ThinManager® PV-Xi Series

Name: ThinManager® PV-Xi Series
SKU: TM-PV-Xi
Price: 100.00 USD
Availability: InStock

Industrial Workstation (ThinManager)

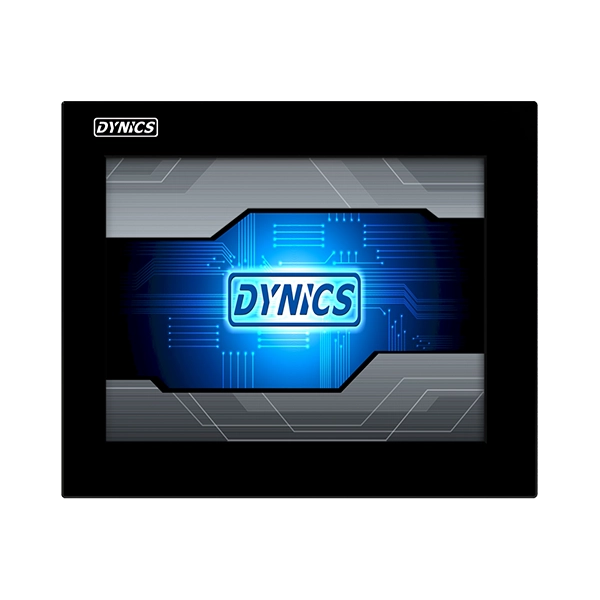

A black-framed display screen with a glowing blue circuit design featuring the word "DYNICS" in the center.

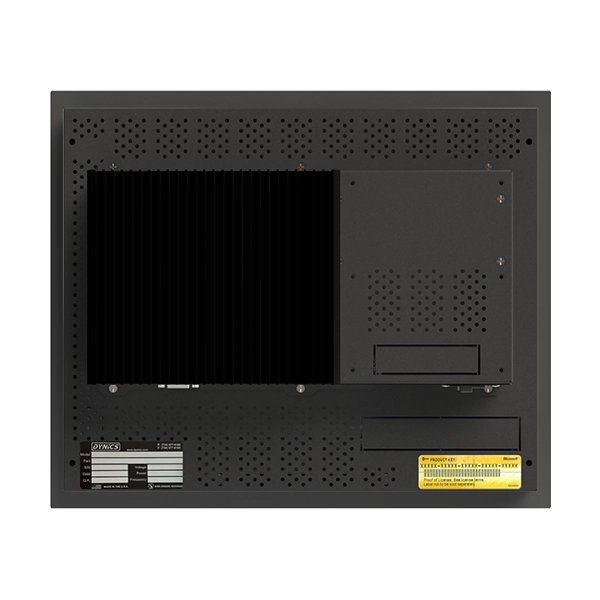

Back view of a black electronic device with various vents and a label, likely indicating specifications.

SKU: TM-PV-Xi Categories: Hardware, ThinManager Enabled Devices

The DYNICS PV-Xi PanelWorx is a series of PC-based HMI units enabled with ThinManager® serving as a competitive drop-in replacement for a major brand.

NEMA 4
Competitive Replacement
24VDC Power Entry
ThinManager® Ready

Data Sheet

Display

PV106 - 10" TFT SVGA (800x600) Flat Panel LCD, DropIn Replacement to Rockwell PanelView Plus 6, Standard Model. 5-Wire Resistive Touch, NEMA 4 Black Powder Coat with Thin Manager Enabled: Intel Alder Lake-N N97 Quad Core up to 3.6GHz Turbo embedded processor, 8GB DDR5 RAM, 24VDC Power Entry (3-Pin Quick Disconnect Included), fanless, no moving parts, aluminum heat sink. I/O Ports: 2x 2.5Gb Ethernet, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x DisplayPort v1.4a, 1x HDMI, 1x Audio Jack (line-out)

PV126 - 12" TFT WXGA (1280 x 800) Flat Panel LCD, DropIn Replacement to Rockwell PanelView Plus 6, Standard Model. 5-Wire Resistive Touch, NEMA 4 Black Powder Coat with Thin Manager Enabled: Intel Alder Lake-N N97 Quad Core up to 3.6GHz Turbo embedded processor, 8GB DDR5 RAM, 24VDC Power Entry (3-Pin Quick Disconnect Included), fanless, no moving parts, aluminum heat sink. I/O Ports: 2x 2.5Gb Ethernet, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x DisplayPort v1.4a, 1x HDMI, 1x Audio Jack (line-out)

PV156 -15" XGA (1024x768) Flat Panel LCD, DropIn Replacement to Rockwell PanelView Plus 6, Standard Model. 5-Wire Resistive Touch, NEMA 4 Black Powder Coat with Thin Manager Enabled: Intel Alder Lake-N N97 Quad Core up to 3.6GHz Turbo embedded processor, 8GB DDR5 RAM, 24VDC Power Entry (3-Pin Quick Disconnect Included), fanless, no moving parts, aluminum heat sink. I/O Ports: 2x 2.5Gb Ethernet, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x DisplayPort v1.4a, 1x HDMI, 1x Audio Jack (line-out)

PV107 -10" TFT SVGA (800x600) Flat Panel LCD, DropIn Replacement to Rockwell PanelView Plus 7, PRO Model. 5-Wire Resistive Touch, NEMA 4 Black Powder Coat with Thin Manager Enabled: Intel Alder Lake-N N97 Quad Core up to 3.6GHz Turbo embedded processor, 8GB DDR5 RAM, 24VDC Power Entry (3-Pin Quick Disconnect Included), fanless, no moving parts, aluminum heat sink. I/O Ports: 2x 2.5Gb Ethernet, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2, 2x USB 2.0, 1x DisplayPort v1.4a, 1x HDMI, 1x Audio Jack (line-out)

PV127 - 12" TFT WXGA (1280 x 800) Flat Panel LCD, DropIn Replacement to Rockwell PanelView Plus 7, PRO Model. 5-Wire Resistive Touch, NEMA 4 Black Powder Coat with Thin Manager Enabled: Intel Alder Lake-N N97 Quad Core up to 3.6GHz Turbo embedded processor, 8GB DDR5 RAM, 24VDC Power Entry (3-Pin Quick Disconnect Included), fanless, no moving parts, aluminum heat sink. I/O Ports: 2x 2.5Gb Ethernet, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2, 2x USB 2.0, 1x DisplayPort v1.4a, 1x HDMI, 1x Audio Jack (line-out)

PV157 - 15" TFT XGA (1024x768) Flat Panel LCD, DropIn Replacement to Rockwell PanelView Plus 7, PRO Model. 5-Wire Resistive Touch, NEMA 4 Black Powder Coat with Thin Manager Enabled: Intel Alder Lake-N N97 Quad Core up to 3.6GHz Turbo embedded processor, 8GB DDR5 RAM, 24VDC Power Entry (3-Pin Quick Disconnect Included), fanless, no moving parts, aluminum heat sink. I/O Ports: 2x 2.5Gb Ethernet, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2, 2x USB 2.0, 1x DisplayPort v1.4a, 1x HDMI, 1x Audio Jack (line-out)
